EtherCAT® Inertial Measurement + Navigation

no.1

EtherCAT® IMU
Navigation + Compass

GABLE-IMU™
Inertial Measurement Units exclusively designed for EtherCAT® or EtherCAT P® networks.

Equipped with premium XSENS® inertial measurement sensors and available in a robust IP67 housing or as a PCB only version for OEM applications.

Broad range of sensor options including GPS, inertial navigation and compass (GNSS/INS RTK).

Exceptional high standard in performance, quality and support. Gable Systems BV is an official value added reseller of XSENS® and registered EtherCAT® device manufacturer.

600-Series EtherCAT IMU + Navigation | Gable Systems BV

Gable-IMU™

ONE
Series

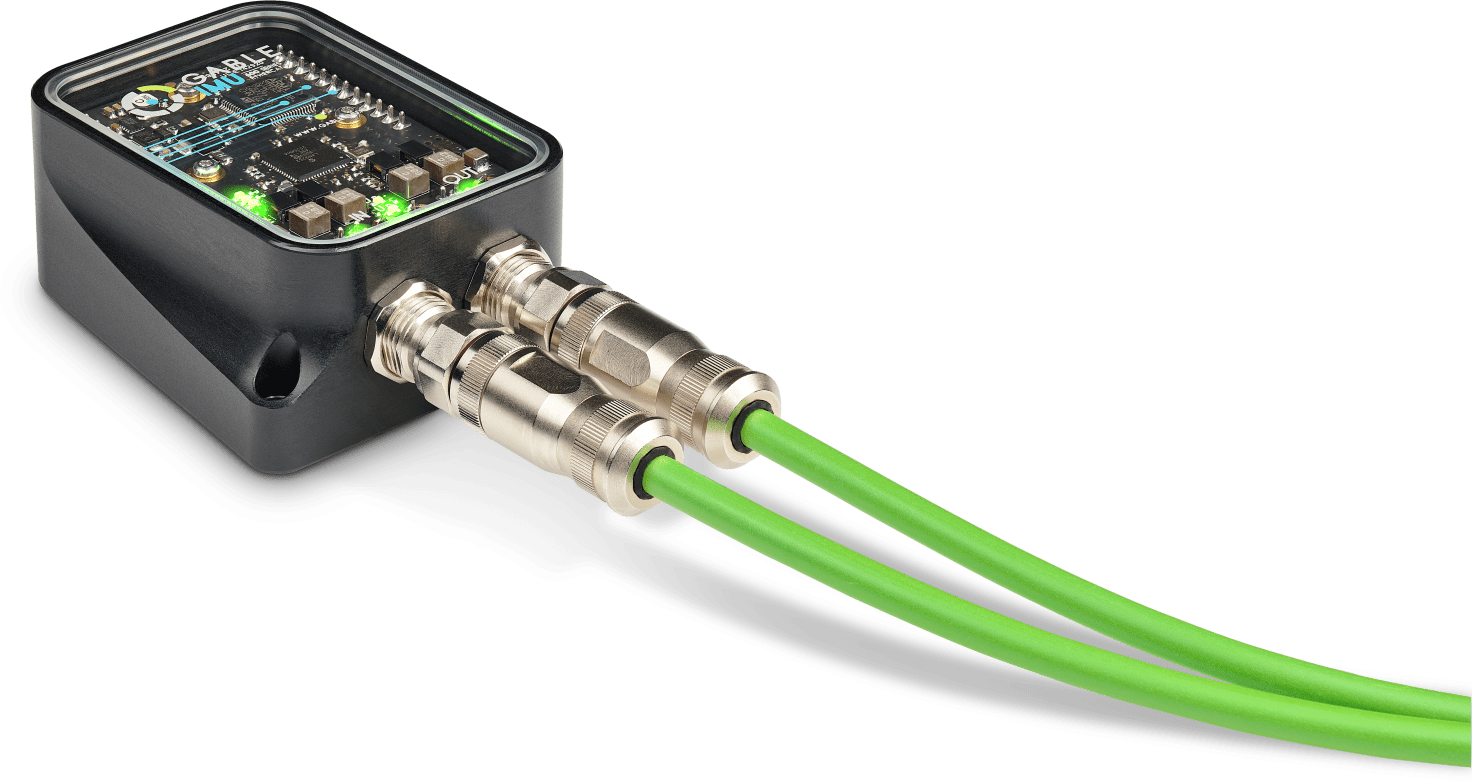

Housed version (HSD) of ONE-SERIES EtherCAT IMU

Features

World’s smallest EtherCAT® IMU

Designed for EtherCAT® networks.

Integrated XSENS® MTi-1 sensors

Compact inertial measurement sensors.

Navigation solution

EtherCAT® GPS solution with variants SE5 and SE7.

Housed version (HSD)

IP67 corrosion resistant casing. Size: 62x52x12,5mm (approx. 2.44×2.05×0.49inches)

PCB version (OEM)

“PCB only” version with Molex® pico-clasp connectors in right angle or vertical orientation. Size: 52,5x35x6,9mm (2.07×1.38×0.27 inches)

PCB version (OEM) of ONE-SERIES EtherCAT IMU

Variants

SE1 / SE2 / SE3

Equipped with XSENS® MTi-1, MTi-2 or MTi-3 inertial sensors (IMU, VRU, AHRS).

SE5

Navigation only solution. A cost effective version to enable EtherCAT® GNSS measurements.

SE7

Equipped with XSENS® MTi-7 inertial sensor with inertial navigation (GNSS/INS).

Datasheet ONE-series

3DCAD One-series

Gable-IMU™

600
Series

Housed version (HSD) of 600-SERIES EtherCAT IMU

Features

Premium EtherCAT (P)® IMU

Designed for EtherCAT® or EtherCAT P® networks.

Integrated XSENS® MTi-600 sensors

Premium inertial sensors. Optionally time synchonizable (<< 1us) by use of distributed clocks.

Navigation solution

EtherCAT (P)® GPS solution with variants SE650, SE670 and SE680.

Housed version (HSD)

IP67 corrosion resistant, aluminium casing. Size: 70x64x31mm (approx. 2.76×2.52×1.22inches)

PCB version (OEM)

“PCB only” version for product integration. Size: 60x40x20,5 mm (2.36×1.58×0.81 inches)

PCB version (OEM) of 600-SERIES EtherCAT IMU

Variants

SE610 / SE620 / SE630

Equipped with XSENS® MTi 610, 620 or 630 inertial sensors (IMU, VRU, AHRS).

SE650

Navigation only solution. A cost effective version to enable EtherCAT (P)® GNSS measurements.

SE670

Equipped with XSENS® MTi 670 with inertial navigation (GNSS/INS).

SE680

Equipped with XSENS® MTi 680 with inertial navigation (GNSS/INS) and real time kinematic (RTK).

Datasheet 600-series

3DCAD 600-series
